What is Trunnion Ball Valve ?
Trunnion Ball Valve is used to cut off or connect the media in various of Class150~Class2500. The valves made of different materials are suitable for various media such as water, steam, oil, liquefied gas, natural gas, coal gas, nitric acid, oxidizer, urea and etc.
The driving modes include manual operation and electric operation. The connection ends can be flange or butt welding.
Trunnion Ball Valve Technical Specifications
|
Nominal diameter |
2”-36”(DN50-DN900) |
|
Connection Type |
RF/BW/RTJ |
|
Design standard |
API 6D/ASME B16.34/API608/MSS SP-72 ball valve |
|
Body material |
Cast steel/Forged steel/Cast stainless steel/Forged stainless steel |
|
Ball material |
A105+ENP/F304/F316/F304L/F316L |
|
Seat material |
PTFE/PPL/NYLON/PEEK |
|
Working temperature |
Up to 120°C for PTFE |
|
|
Up to 250°C for PPL/PEEK |
|
|
Up to 80°C for NYLON |
|
Flange end |
ASME B16.5 RF/RTJ |
|
BW end |
ASME B 16.25 |
|
Face to face |
ASME B 16.10 |
|
Pressure temperaure |
ASME B 16.34 |
|
Fire safe&anti-static |
API 607/API 6FA |
|
Inspection standard |
API598/EN12266/ISO5208 |
|
Exposion proof |
ATEX |
|
Type of operation |
Manual gearbox/Pneumatic actuator/Electric actuator |
Our advantages of Trunnion Ball Valve
• ISO 5211 mounting pad compatible for various type of actuators;
• simple structure,reliable sealing and easy maintenance.
• anti-static and fire safe design.
• ATEX certification for explosion proof.

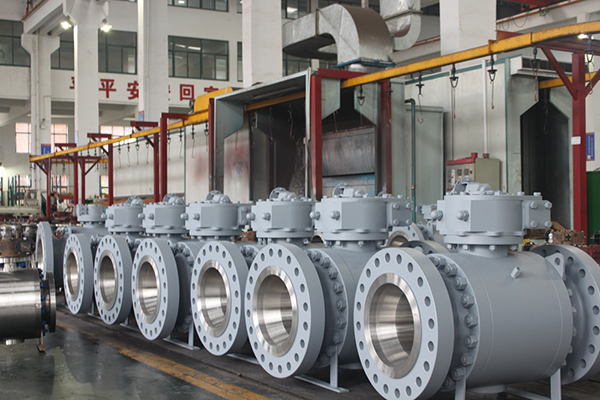

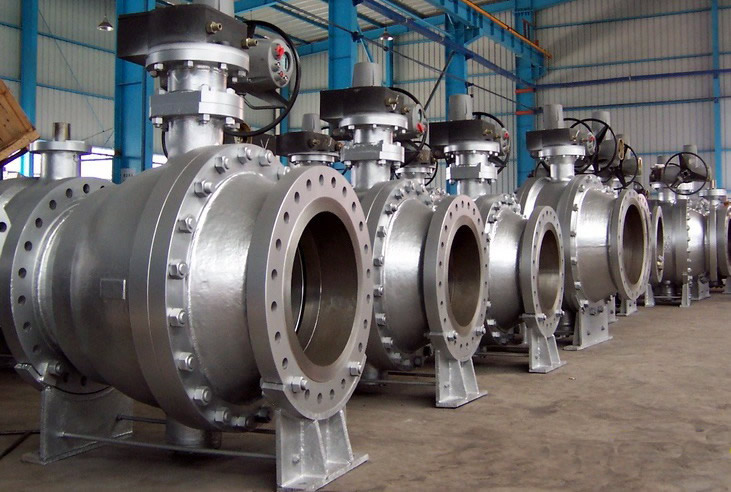

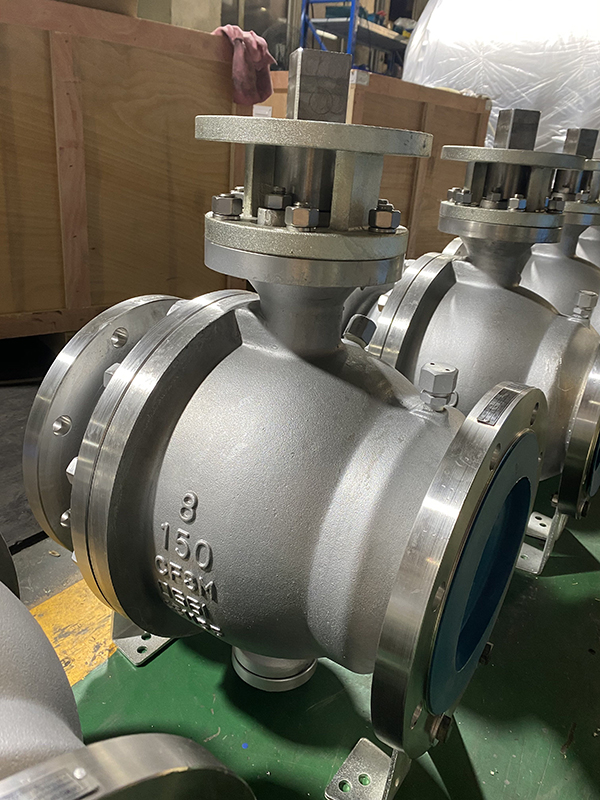

Product Show:
What is the Trunnion Ball Valve used for?
This kind of Trunnion Ball Valve is widely utilized in the exploiting, refining and transporting system of oil, gas and mineral. It can be also utilized to produce chemical products, medicine; production system of hydroelectricity, thermal power and nuclear power; draining system,
heating system and gas system in cities or industries.
